Krishna fab tech, wall cladding, tile, corrugation and accessories are manufactured from the finest high quality raw material coils of PPGI (Pre Painted Galvanized Iron), PPGL (Pre Painted Galvalume) and NCGL (Non Colour Galvalume).
|
 |
| |
PRE-PAINTED GALVANIZED STEEL:
|
| Zinc metalized coating can provide corrosion resistance of galvanized coating and an aesthetic appeal of paint and also strength of steel. |
| Thickness (TCT) |
0.30mm to 0.80mm |
| Metallic Coating |
120 Gsm |
| Tensile Strength |
340 – 550 MPA |
| Paint Coating |
18 – 22 microns on top & 5-8 micron. Primer on bottom |
| Thickness Tolerance |
As per ISI |
| Standard Followed |
IS 277, ASTM A 653, AS 1397 |
|

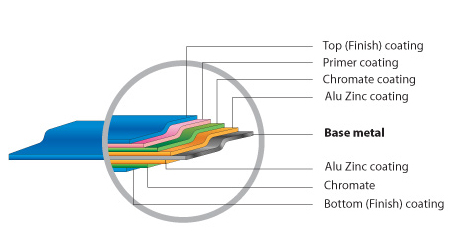

PRE-PAINTED GALV-ALUME / BAR GALV-ALUME SHEET
|
| Zinc aluminum alloy coating can provide corrosion resistance and superior heat reflectivity and can with stand in any weather conditions without surface discoloration. It is also suited for coastal areas. Bare galv-alume coating is inorganic and does not contain volatile compound that can harm the environment. |
| Thickness (TCT) |
0.30mm to 0.80mm |
| Metallic Coating |
Zinc Aluminum Alloy coating AZ 150. |
| Tensile Strength |
340 – 550 MPA |
| Paint Coating |
RMP / SMP / PVDF |
| Paint thickness |
18-22 microns on top and 5-8 microns primer on bottom |
| Thickness Tolerance |
As per ISI |
| Combination |
55% aluminum, 43.4% Zinc & 1.6% silicon |
| Standard Followed |
IS 277, ASTM A 653, AS 1397 / A755 / A792/ JISG 3321 / 3322 |
|
|
|
